    U2EX
(USB2.0用テストフィクスチャ)


Introduction:

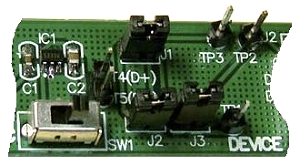

The USB Fixture is a test tool for USB
interface with multi-functions of voltage
switch, voltage test and current test.
It's especially designed to save valuable
labor and time in the production environment.
The USB Fixture is constructed of high
quality components for years of trouble
free service.



        Function


  • Alternative Output Voltage: 5v to 5v/3.3v

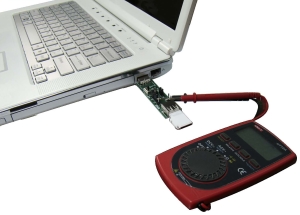

  • Voltage can be tested conveniently and directly
  • Current can be tested conveniently and directly
  • External power supply

Dimension : Width: 65mm Length:18mm PCB Thickness :1.0mm


Different switch and jumper can perform different function.





U2EX 同梱品一覧
U2EX (USB2.0用テストフィクスチャ)


Documents Download
Brief (PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
Schematic (PDF)::   Taiwan   Taiwan 2 Mirror   China Mirror
User manual(PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
