	P16S-P16F M.2 (NGFF) SATA SSDアダプタ (Socket 2 SATA-based , Key B, Maximum dimension type 22110)

Brief	Taiwan 1	Taiwan 2	China
Dimension	Taiwan 1	Taiwan 2	China
Schematic	Taiwan 1	Taiwan 2	China
Selection Guide	Taiwan 1	Taiwan 2	China
Web-shop

概要

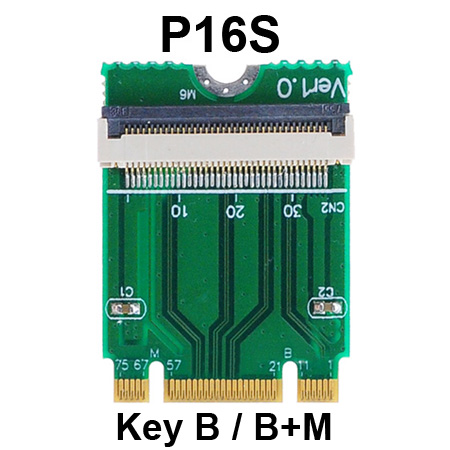

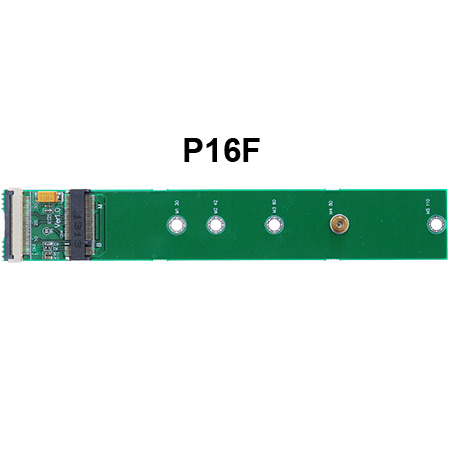

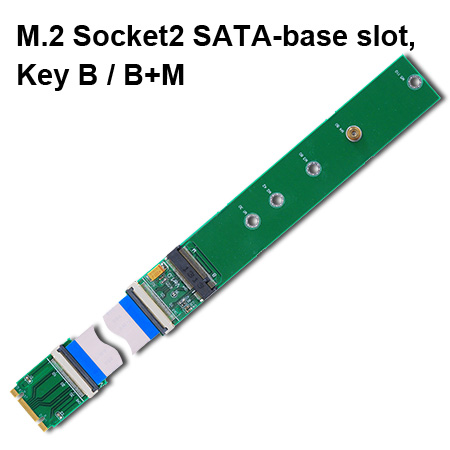

P16S-P16F is an extender board for M.2 (NGFF) SATA-SSD.

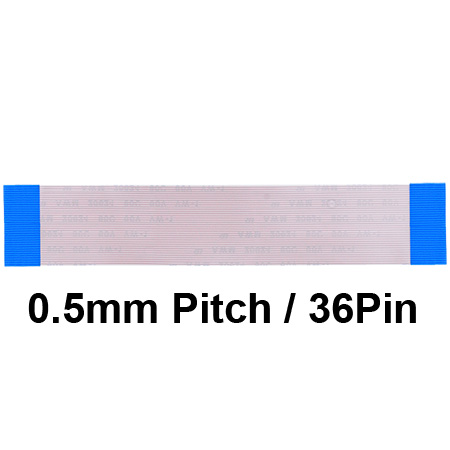

Design the FFC (Flat Flexible Cable) cable for flexible use.
Design type 2242 dimension M.2(NGFF) golden finger for Socket 2 SATA-base Key B/B+M slot.
Can support all dimension of SSD cards: 2230, 2242, 2260, 2280, 22110.
The extender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers and factory tests.

機能一覧

M.2 Socket 2 SATA-SSD extender board
Design the FFC (Flat Flexible Cable) cable for flexible use.

仕様一覧

M.2 Specification Revision 0.9-3
Support 2230/2242/2260/2280/22110
dimension of M.2 SSD Cards.
Golden finger base on M.2 Socket2 SATA-base slot, Key B/B+M
Support M.2 Socket 2 SATA-SSD, Key B/B+M card type.

Web-shop


P16S x1	P16F x1	FFC0536P-010A (FFC cable 10cm) x1 FFC0536P-020A (FFC cable 20cm) x1 FFC0536P-030A (FFC cable 30cm) x1	専用平ネジ x2
