 EC230
(ExpressCard型SDカードリーダ)

Introduction:

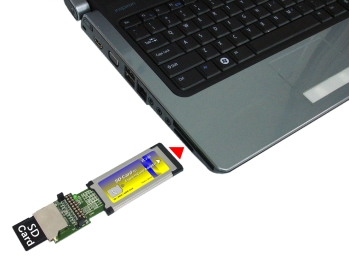

SD card to Expresscard adapter design for high speed SD cards. You can easily add SD card to your notebook with 34/54mm ExpressCard slot.





    Specification

  • Compliant with ExpressCard 1.0 specification.
  • Compliant with PCI Express Base Specification rev 1.1
  • Compliant with SD Memory Card Specification Version 2.0
  • Support SD High Capacity (SDHC)
  • Compliant with SD Input / Output (SDIO) Card Specification Version 2.0
  • Compliant with SD Host Controller Standard Specification Version 2.0
  • Compliant with MMC MultiMediaCard Specification Version 4.1
    1. Supports MMC Plus and MMC Mobile. (4bit only)



    Notice
  • To use SD / SDHC Cards on Windows XP/VISTA/7 your system requires install RICOH private driver for more compatibility (download here). Otherwise your SD cards can’t work properly.
  • To use SDIO wireless Cards on Windows 7, your system requires choose Microsoft SDA host inbox driver. And SP1 Update or Windows 7 (KB983177) hotfix update.
  • To use SD / SDHC Memory Card Formatting Software, Please download file from SDCARD.org web-site as below:
    http://www.sdcard.org/consumers/formatter_3/

    Please backup your data before using the formatting program.

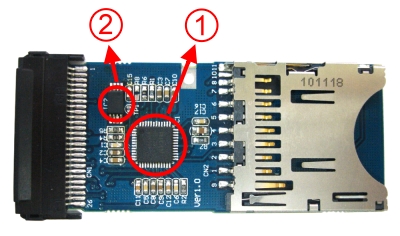

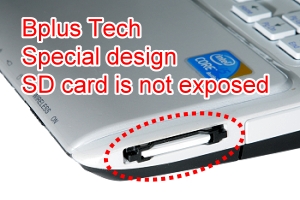

EC230 Special design
1.RICOH R5U230 PCIe bridge controller.
2.Serial EEPROM for code upgradeable.
3.Hi quality SD push-push connecter.
4.Expresscard 26PIN connecter.


Box Contents:
ExpressCard/34 SD card adapter

    System Requirements:

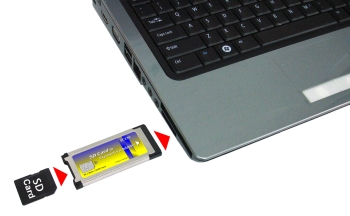

  • Notebook or desktop PC with an available ExpressCard slot.
  • Windows 7 (32-/64-bit) / Vista (32-/64-bit) SP2 or later/
    XP (32-/64-bit) SP3 or later


  SDIO Compatibility List
Brand
Model
Chip
Compatibility
MR04R
EC230
MP230
miniPCI-e
ExpressCard
Add-on card
Atheros SD25 AR6102
Pass
Pass
Pass
Atheros SD27 AR6102
Pass
Pass
Pass
Atheros SD31 AR6003
Pass
Pass
Pass
Atheros SD32 AR6003
Pass
Pass
Pass
Atheros WB31 AR6003+AR3001
Pass
Pass
Pass
Atheros SD31B AR6003
Pass
Pass
Pass
Atheros SD32B AR6003
Pass
Pass
Pass
SPIL AF-N-30G AR6003
Pass
Pass
Pass
USI WM-AN-AT-01 AR6003
Pass
Pass
Pass
USI WM-BN-AQ-01 AR6003
Pass
Pass
Pass
ASE SAT11C AR6003
Pass
Pass
Pass
Brand
Model
Chip
miniPCI-e
ExpressCard
Add-on card
MR04R
EC230
MP230
Notice:

To use SDIO wireless Cards on Windows 7, your system requires choose Microsoft SDA host inbox driver. And SP1 Update or Windows 7 (KB983177) hotfix update.



EC230 Ver1.0
Model: HP ProBook 4421s
System : win7 SP1 32 bit          Test Tools : DiskMark
CPU: intel(R)Core(TM)i5 CPU M 460 @ 2.53GHz 2.53GHz     RAM : 4.00GB
Graphics card : ATI Mobility Radeon HD 5470

EC230 TEST 1
Driver: SDA Standard Compliant SD Host Controller
TOSHIBA
Class 10 SDHC
8GB
TOSHIBA
UHS-1 SDXC
64GB
SanDisk SDHC
Class UHS-1
8GB
Read (MB/S)
22.08 MB/S
22.08 MB/S
22.08 MB/S
Write (MB/S)
18.50 MB/S
12.75 MB/S
20.21 MB/S

EC230 TEST 2
Driver: Ricoh PCIe SD/MMC Host Controller
TOSHIBA
Class 10 SDHC
8GB
TOSHIBA
UHS-1 SDXC
64GB
SanDisk SDHC
Class UHS-1
8GB
Read (MB/S)
21.38 MB/S
21.37 MB/S
21.06 MB/S
Write (MB/S)
17.77 MB/S
12.67 MB/S
19.61 MB/S


EC230 Package Contents
EC230 (ExpressCard型SDカードリーダ) x1


SPB087

SPB087
(ExpressCard 34 to 54 Bracket)
Unit price:
US$ 2
Notice:
SPB087 (Expersscard 34 to 54 bracket) is design for BPLUS own product. It may cannot install properly to other expresscard brand.



Documents Download
EC230 Brief  Taiwan  Taiwan 2 Mirror  China Mirror
SD cardreader comparison  Taiwan  Taiwan 2 Mirror  China Mirror
Test Report  Taiwan  Taiwan 2 Mirror  China Mirror
SDIO Compatibility   Taiwan   Taiwan 2 Mirror   China Mirror
To use SD / SDHC Cards on Windows XP/VISTA/7 your system requires install RICOH private driver for more compatibility (download here). Otherwise your SD cards can’t work properly
To use SDIO wireless Cards on Windows 7, your system requires choose Microsoft SDA host inbox driver. And SP1 Update or Windows 7 (KB983177) hotfix update.
To use SD / SDHC Memory Card Formatting Software, Please download file from SDCARD.org web-site as below:
http://www.sdcard.org/consumers/formatter_3/
Please backup your data before using the formatting program.
