   U3C2F

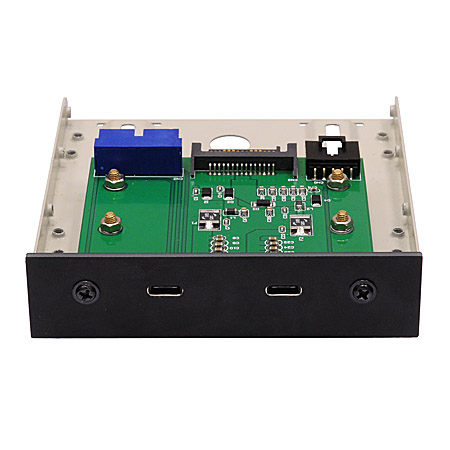

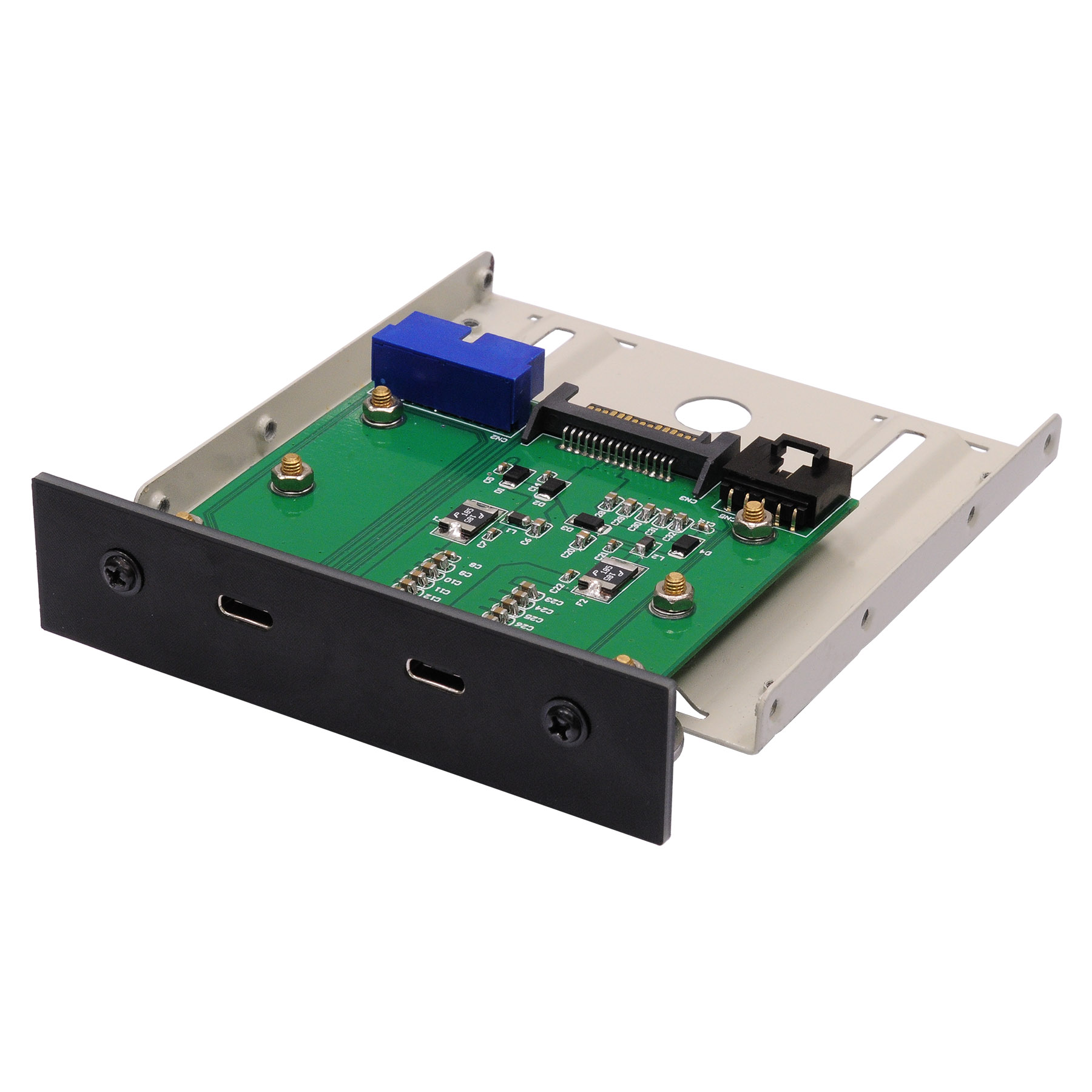

USB 3.1 Gen1 / USB2.0 Type C Front Drive Bay Docking System
(3.5 inch Form Factor)







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Web-shop


    概要

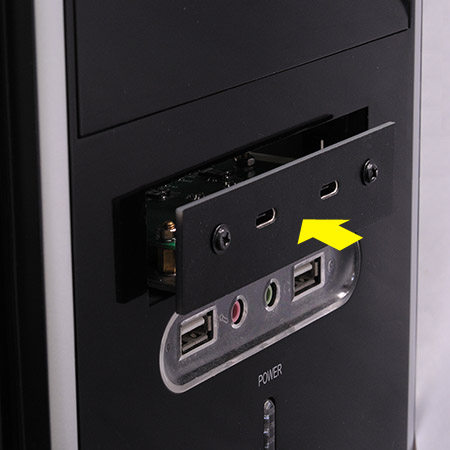

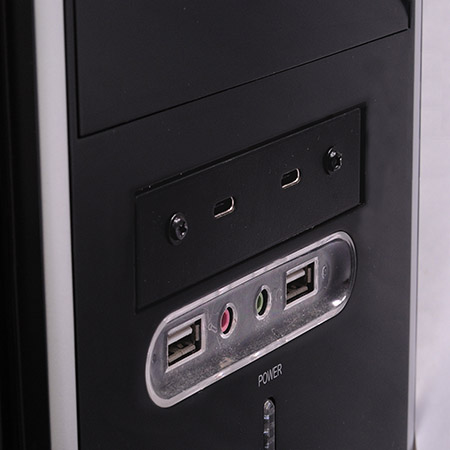

U3C2F is USB3.1 Gen1 Type C and USB2.0 Type C to USB3.0 19Pin Header and USB2.0 5pin header adapter design for DeskTop front drive bay solution.




        機能一覧


  • Allows user to use USB type C port in the Desktop or Laptop

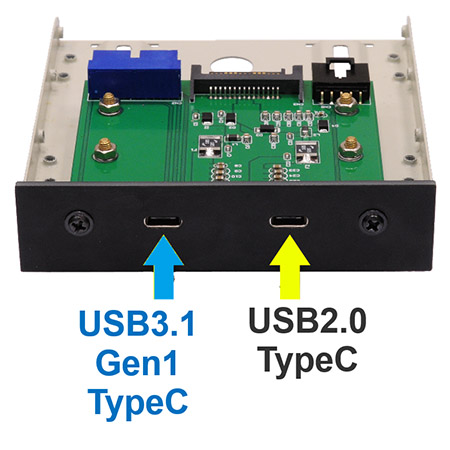

  • Support Super-Speed USB 3.1 Gen1 Type C (5Gbps) and USB2.0 Type C (480Mbps).
  • USB Bus Power : 5V / 3A (15W) for both Type C ports

        System Requirement

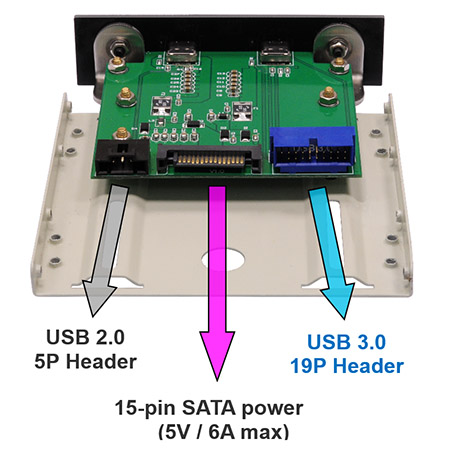

  • USB3.0 19pin Header Port * 1, USB2.0 5pin Header Port * 1, SATA 15pin Power input (5V/6A)
  • Windows XP, Vista, Windows 7, Server 2008, Windows 8,Linux, Mac iOS
    = Compatible for USB3.0 /XHCI and USB2.0 / EHCI on PC systems
  • 認証
    RoHS
  • 動作温度
    0 ~ 70℃





    Web-shop






U3C2F
(USB 3.1 Gen1 / USB2.0 Type C Front Drive Bay Docking System) x1
Y19-U02-055
(19pin to 19pin) x1
Y05-U09-060
(USB dupont 5PIN to 5PIN cable) x1
