   M2S4C
Quad M.2 (NGFF) SSD to SATA RAID Adapter







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Compatibility List Taiwan 1 Taiwan 2 China
Web-shop


Note: The above figure red gasket must be installed, otherwise it will likely cause damage SSD modules

        Function


  • Allows user to use standard SATA-IO M.2 SATA SSD to SATA hard drive in the Desktop.
  • Support Hi-Speed SATA3 / 6Gbps mass storage interface.

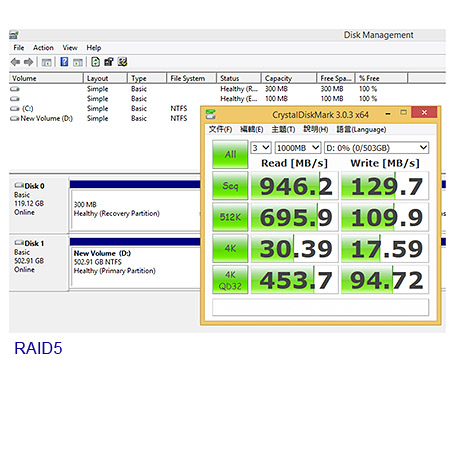

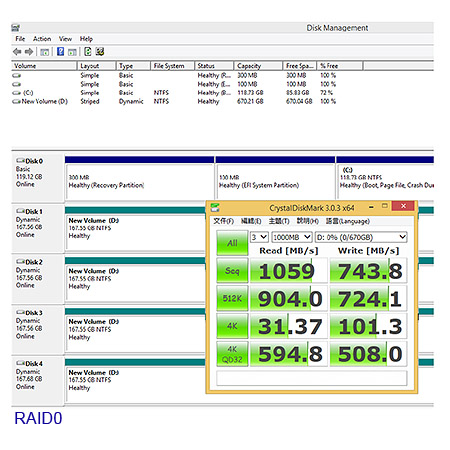

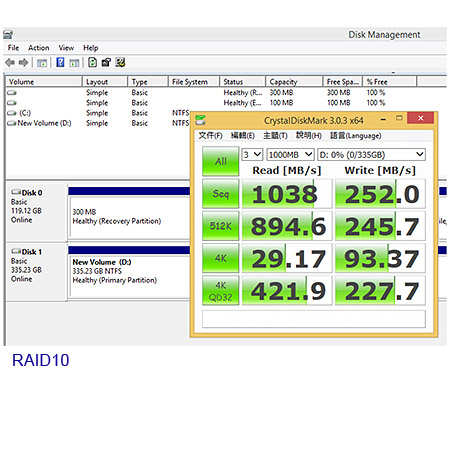

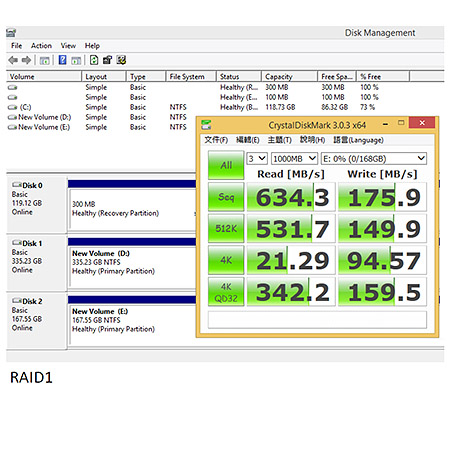

  • Support software RAID 0/1/5/10.
  • Support OS RAID and Mother-Board RAID 0/1/5/10.

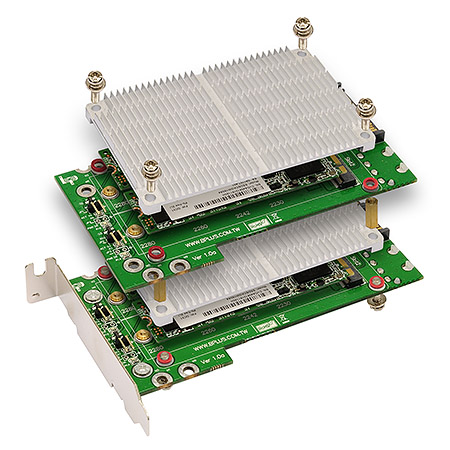

  • PCB board can be stacking.

        Specifications


  • M.2 Specification Revision 1.0
  • Serial ATA Spec. Reversion 3.2
  • Support 2230 / 2242 / 2260 / 2280 type M.2 Card dimension.
  • Support M.2 Socket 2 SATA-based SSD Module.
  • Support M.2 Key B Card Type.





        System Requirements


  • Desktop PC with an available SATA slot.
  • Available PCIe slot/2.5” herd driver space/3.5”herd driver space.
  • Windows, Vista 32/64, Windows 7, Windows 8, Windows server 2008/2010/2012 or Linux.

        Dimension & Weight(PCB board)


  • 120mm * 64mm * 16mm ; 40g

        Certification


  • RoHs

        Operating Temperature


  • 0 ~ 70℃

    Web-shop



M2S4C-CT45
*Contact Sales

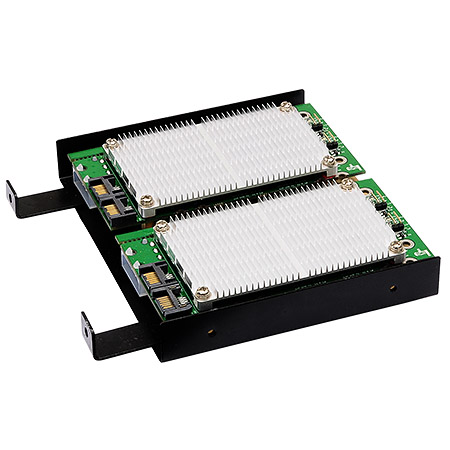

M2S4C-CT45
(Quad M.2 SSD to SATA RAID Adapter) x1
Y07-S04-040
(SATA3 cable 40cm) x4
CT45 Bracket Accessory Kit x1
Flat-Head Screw x4



M2S4C-4
*Contact Sales

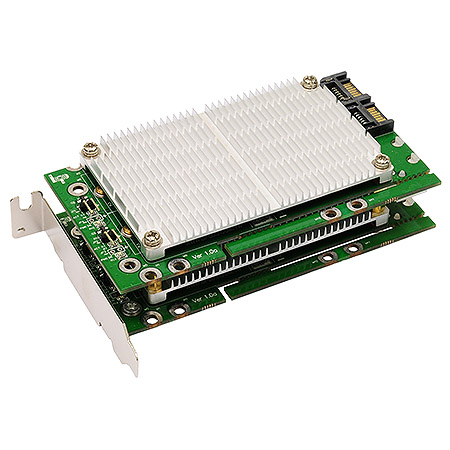

M2S4C-4
(Quad M.2 SSD to SATA RAID Adapter) x1
JP0155
(Standard Height PCI express bracket) x1
Y07-S04-040
(SATA3 cable 40cm) x4
Flat-Head Screw x4



M2S4C-CT43
*Contact Sales

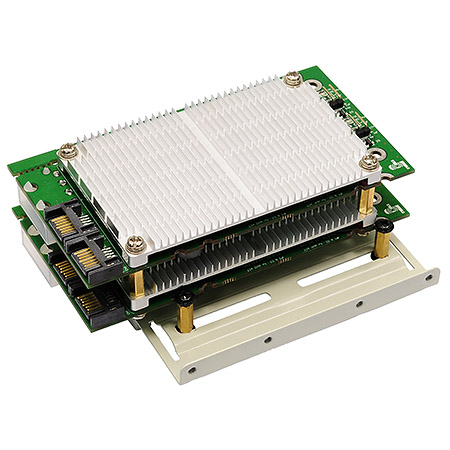

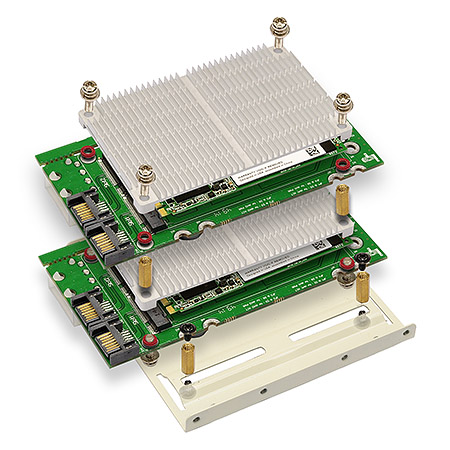

M2S4C-CT43
(Quad M.2 SSD to SATA RAID Adapter) x1
Y07-S04-040
(SATA3 cable 40cm) x4
CT43 Bracket Accessory Kit x1
Flat-Head Screw x4



M2S4C-2
*Contact Sales

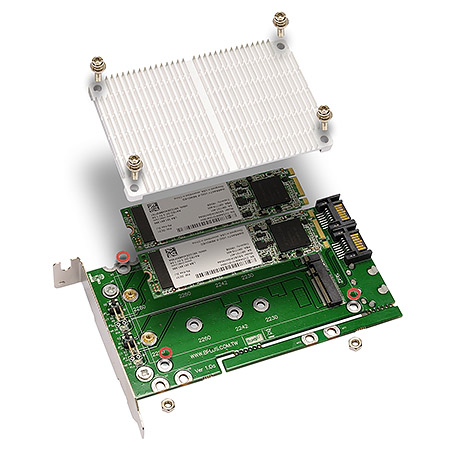

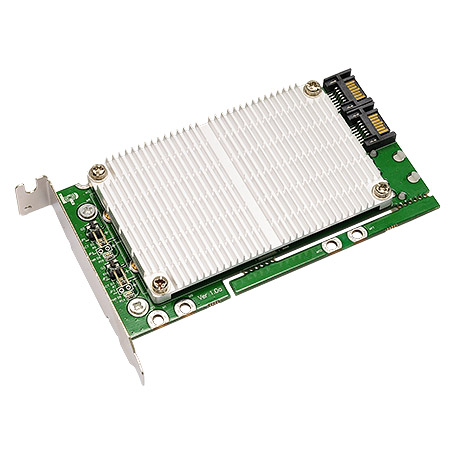

M2S4C-2
(Dual M.2 SSD to SATA RAID Adapter) x1
JP0155
(Standard Height PCI express bracket) x1
Y07-S04-040
(SATA3 cable 40cm) x2
Flat-Head Screw x2
