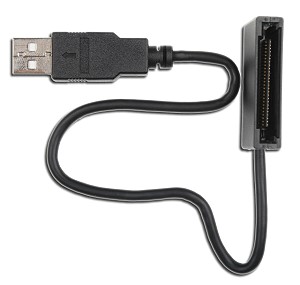

ECHUE-D01 (USB 2.0 Card Cable/Adapter for USB Mode ExpressCard 34/54)
Introduction:
Proudly presents you a perfect solution for accessing USB mode ExpressCard 34/54 on PC/Mac via USB 2.0 interface.
ECHUE-D01 supports USB 2.0 interface, and the data transfer rate reaches up to 480Mb/s. It accepts both 34 mm and 54 mm USB ExpressCard. It also allows the Hot-Plug and Hot-Swap features of the USB ExpressCard. Whether I/O card or memory card, all the USB ExpressCard is acceptable for ECHUE-D01.
ECHUE-D01 is a very convenient device for any PC/Mac equipped with USB 2.0 interface to use USB ExpressCard.
Features
- upports 34 mm and 54 mm USB 2.0 ExpressCard.
- Install in native USB 2.0 bus.
- Compliant with USB 2.0 and USB 1.1 specification.
- Supports 480Mb/s Hi-Speed USB data transfer rate.
- Supports Hot-Plug and Hot-Swap.
- Compatible with PC and Mac.
- Push-Push card slot for easy insertion/extraction of ExpressCard.
- Suitable for desktop/notebook equipped with USB interface.
Specifications
| Input Socket | USB 2.0 ExpressCard 34 / 54 |
| Output Interface | USB 2.0 (Hi-Speed) |
| Cable Interface | USB Type-A |
| Supporting Cards | USB Mode I/O or Memory ExpressCard 34/54 |
| Data Transfer Rate | 480 Mbps (Max.) |
| Supporting OS | Microsoft Windows 2000 / ME / XP / VISTA Mac OS 10.1.3 or above |
| Safety Approval | CE / FCC / BSMI |
| Power Consumption | DC +5.0V directly from USB port |
| Dimensions | 40.0 mm(L)* 24.0 mm(W)* 8.4 mm(H) 300.0 mm (Cable Length) |

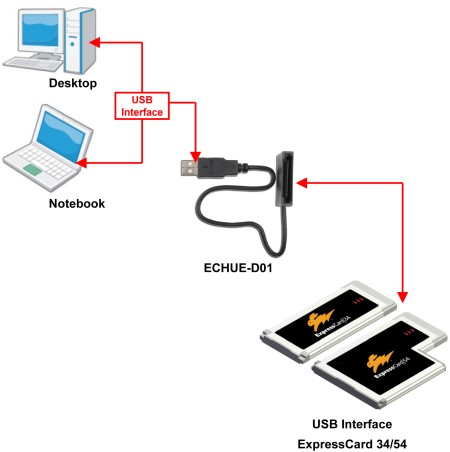

| Application Diagram |
 |
