Intel® トライバンド無線-AC 17265

WiGig (802.11ad) & Wi-Fi (802.11ac/agn) + Bluetooth* Combo Module

Intel® Wireless Gigabit Antenna-M 10041R

WiGig (802.11ad) Antenna Module

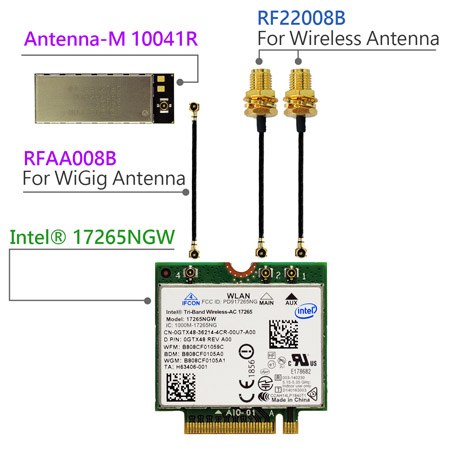

Intel® Tri-Band Wireless-AC 17265 Intel® Tri-Band Wireless-AC 17265
Intel® Wireless Gigabit Antenna-M 10041R


Product Description

The Intel® Tri-Band Wireless-AC 17265 delivers high-speed, 60 GHz WiGig (802.11ad) wireless docking connectivity for mobile client device (2 in 1, tablet, laptop) with up to 4.7 Gbps of bidirectional throughput. It’s available in the M.2 Type 3030 form factor combined with the dedicated Intel® Wireless Gigabit Antenna-M 10041R antenna module. Complemented with the Intel® Wireless Gigabit Sink-M 13100, it enables wire-equivalent user experience for wireless docking, peripherals access and device-to-device communications.
The Intel® Tri-Band Wireless-AC 17265 also includes Intel® Dual Band Wireless-AC 7265 for 802.11ac, dual-band, 22 Wi-Fi + Bluetooth* connectivity for Wi-Fi speeds up to 867 Mbps1, higher capacity, broader coverage and longer battery life. Intel® Tri-Band Wireless-AC 17265
supports innovative Intel-only features including Intel® Wireless Gigabit Docking, Intel® Wireless Display and Intel® vPro™ Technology.
Intel® Wireless Gigabit Antenna-M 10041R

  • 17265.NGWG
  • 10041.RFWG
Product Name

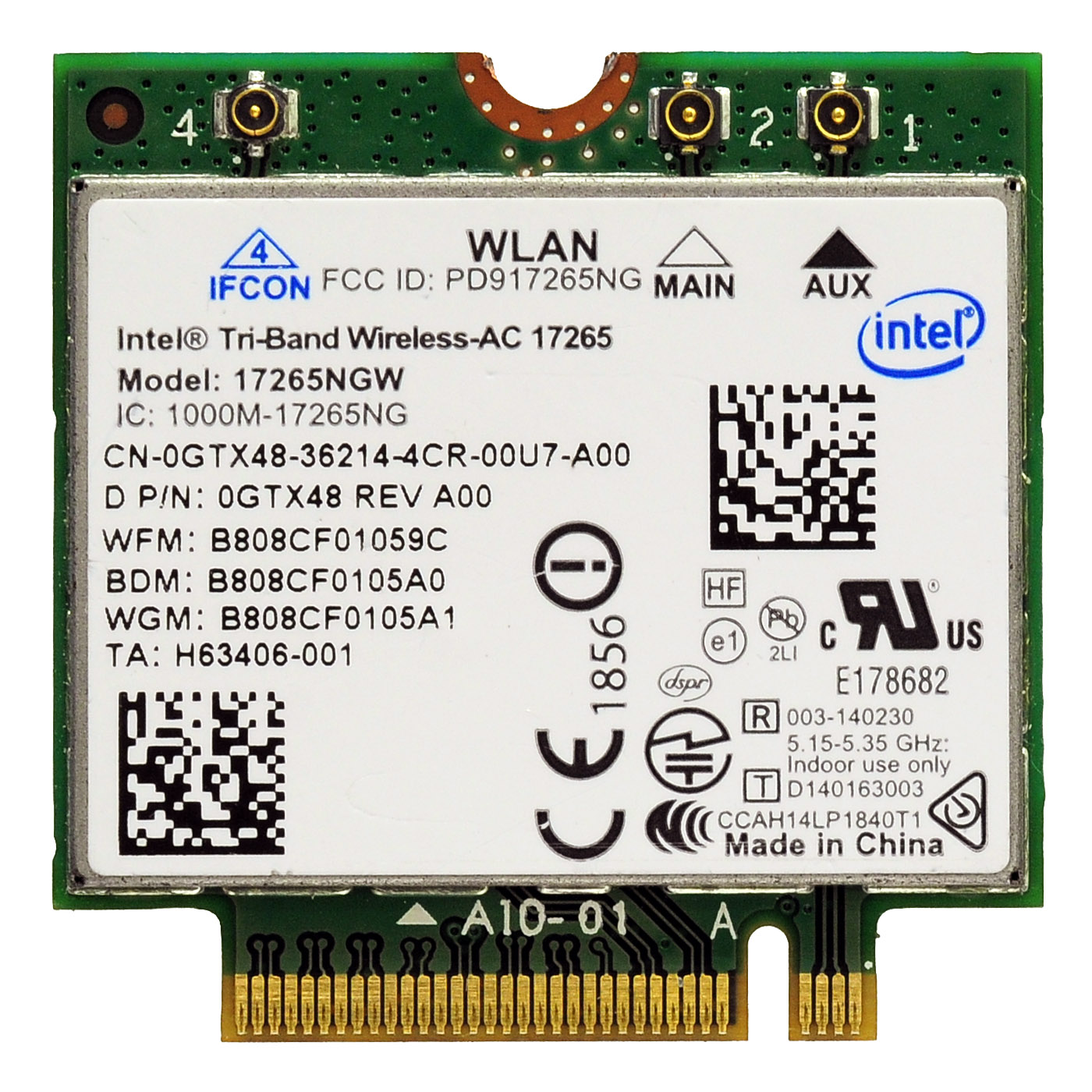

Intel® Tri-Band Wireless-AC 17265

Model Name 17265.NGWG
Version M.2 (NGFF)
Product Picture
產品圖像
製品画像
Price
價格
価格
USD 40.
Related Items
相 關 配 件
RF22008B
MHF4-RPSMA cable 8cm
US$ 3.
RF12008B
MHF4-SMA cable 8cm
US$ 3.
Product Name

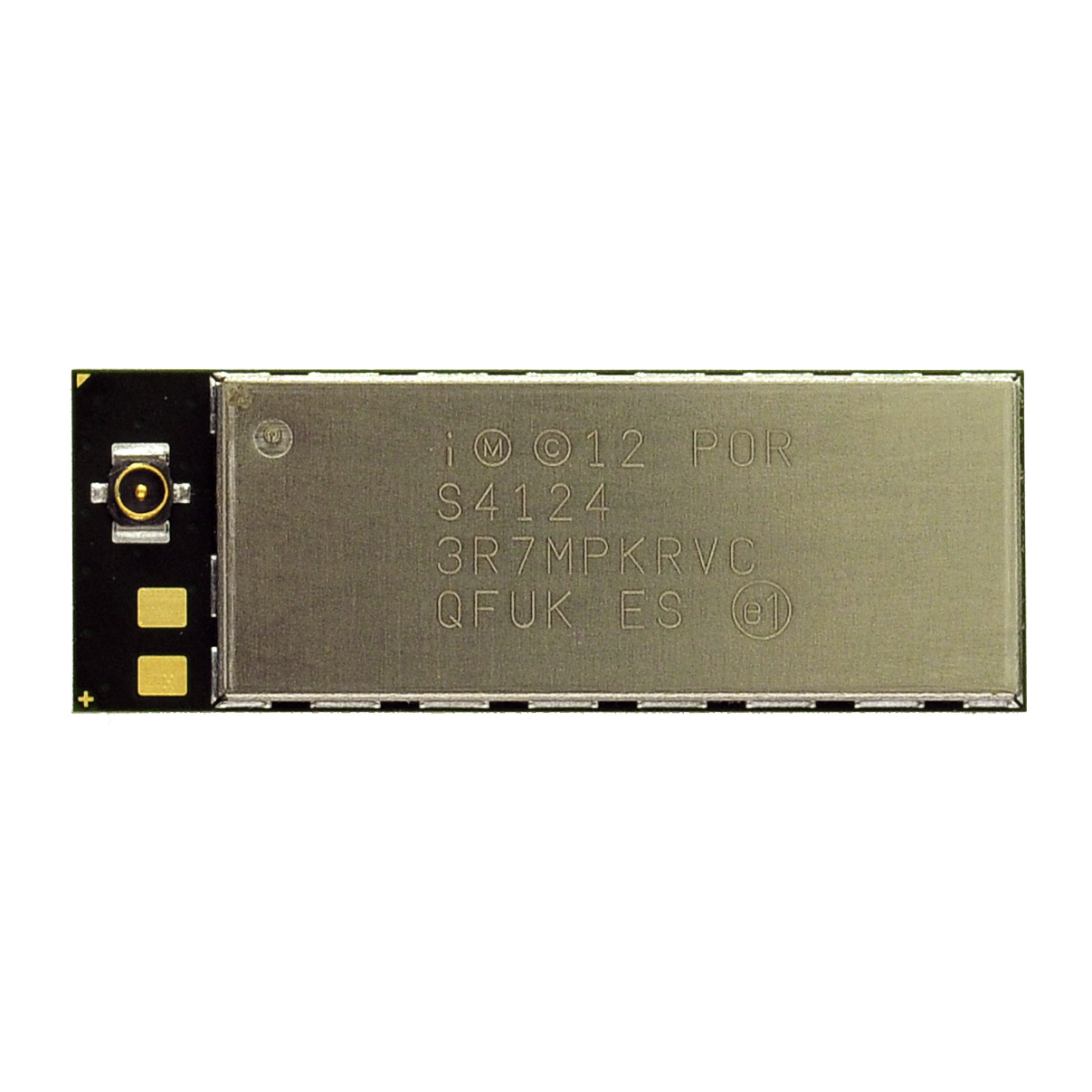

Intel® Wireless Gigabit Antenna-M 10041R

Model Name 10041.RFWG
Product Picture
產品圖像
製品画像
Price
價格
価格
USD 30.
Related Items
相 關 配 件
RFAA008B
MHF5-MHF5 cable 8cm
US$ 3.

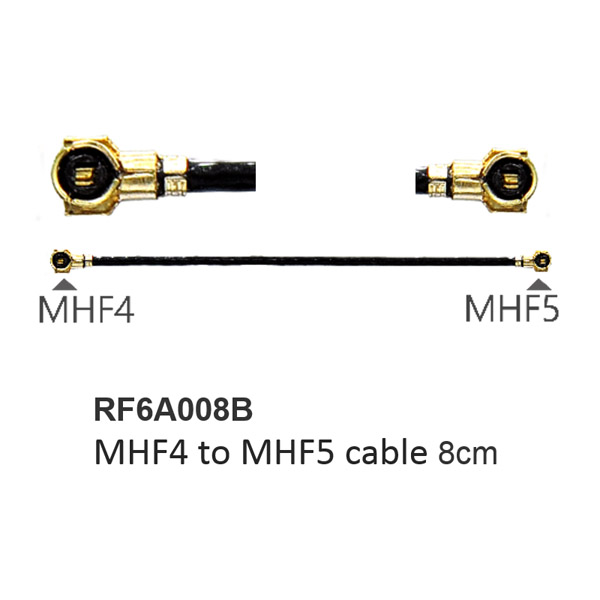

RF6A008B
MHF4-MHF5 cable 8cm
US$ 3.


    Intel® Wireless Gigabit (802.11ad)

    Benefits

Wireless Gigabit Docking (Client) Allows wire-equivalent quality for up to two full HD displays, low-latency human interface (HID) devices,
and multi-Gbps IO for on-desk productivity experience.
Wireless Access to Peripherials Enables wire-free multi-Gbps connectivity for any USB 3.0 device, such as storage or HD camera that is
WiGig-enabled or connected to a Wireless Gigabit dock station
Device to Device
Allows multi-Gbps connectivity between devices
WiGig Display Extension (WDE) WiGig Wireless Display Extension, for visually-lossless, low latency, robust video and HD audio
WiGig Serial Extension (WSE) WiGig Wireless Serial Extension, for efficient, native USB 3.0 transfers including Bulk and Isochronous
Client Dock Management Dedicated, user-friendly Intel® Wireless Gigabit Dock Manager utility on the client to configure the dock
settings (password protectable)
Dock Lock Whitelist to allow OEM’s control of client-dock connectivity capabilities.


Intel Dual Band Wireless-AC 7265
(802.11ac + Bluetooth)

Benefits

More Speed
Better Coverage
Larger Capacity
802.11ac, Dual Band, 80 MHz, 2x2
Delivers dramatically faster Wi-Fi speeds (up to 867 Mbps1) than 802.11n, with more bandwidth per
stream 433 Mbps), more capacity for more users (extended channel bonding 80 MHz), broader coverage
and better battery life (more data transmit efficiencies reduces power consumption).
Bluetooth 4.0* Smart Ready
(Low Energy)
Dual-mode Bluetooth 4.0* connects to the newest low-energy Bluetooth* products, as well as your familiar
devices, such as headsets, keyboard, mice and more.


    Experience the Intel Difference


Wire-Like Desktop Connectivity
Intel® Wireless Gigabit Docking
Allows wire-equivalent quality for up to two full HD displays, low-latency human interface (HID) devices,
and multi-Gbps IO for on-desk productivity experience. Enables seamless connectivity to desktop
devices and the Intel® Wireless Gigabit Dock Manager to easily configure Intel® Wireless Gigabit Docking
from the client.
Your Ultrabook™ On Your TV
Intel® Wireless Display2
Watch your PC or Ultrabook™ content instantly without wires on the big HD screen with stunning image
clarity and sound. Intel® Wireless Display gives you a serious entertainment upgrade. Stream movies,
videos, games, photos, connect with friends, and more—experience it all, bigger and better than ever
before.
Intel® vPro™ Technology3 Supports Intel’s hardware-based security and management features built into Intel® Core™ vPro™
processors and chipsets that enables IT to manage PCs virtually anywhere, anytime while reducing
deployment costs, improving security and ROI.
Intel® Active Management
Technology4
Using integrated platform capabilities and popular third-party management and security applications,
Intel® AMT allows IT or managed service providers to better discover, repair, and protect their networked
computing assets. Intel AMT is a feature of Intel® Core™ processors with Intel® vPro™ technology.
Intel Location Based Service5 Enables seamless and accurate Wi-Fi indoor location service for employees to see campus maps with
reference to their location, locate the nearest resource (printer, conference, room, elevator, etc.), or for
asset tracking.



    Intel® Tri-Band Wireless-AC 17265 Module Specifications

Dimensions (H x W x D)
Weight
Wi-Fi Diversity
Radio ON/OFF Control

Connector interface

LED Output
Operating Temperature
(Adapter Shield)
Humidity Non-Operating
Operating Systems
Wi-Fi Alliance

IEEE WLAN Standard
Bluetooth*
M.2 3030: 30 mm x 30 mm x 2.4 mm [1.5mm Max (Top Side)/ 0.1mm max (bottom side)]
3.7gr
Supported
Supported in both hardware and software. One HW control is shared between Wi-Fi and WiGig, another
one is dedicated for Bluetooth
M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna M10041 Module using
X- FL (single coax cable to carry power, IF and control)
On/Off
0º to +80° C

50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
Microsoft Windows 7*, Microsoft Windows 8.1* with connected standby
Wi-Fi CERTIFIED* for 802.11ac, Wi-Fi CERTIFIED* a/b/g, Wi-Fi CERTIFIED* n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0, Protected Management Frames, Wi-Fi Direct* for peer to peer device connections.
IEEE 802.11abgn, 802.11ac, 802.11ad, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)


   Intel® Wireless Gigabit Antenna-M10041R Module Specifications

Dimensions (H x W x D)
Weight
Connector interface
Operating Temperature
(Adapter Shield)
Humidity Non-Operating
9 mm x 25 mm x 2.45 mm
1g
X.FL
0º to +80° C

50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)


  Product Name

    Model Number

  Version

Intel® Tri-Band Wireless-AC 17265 17265.NGWG 802.11ad (Channels 1,2,3), 802.11ac 2x2, Bluetooth 4.0, M.2 3030 1-DP
Intel® Wireless Gigabit Antenna M10041R 10041.RFWG 802.11ad radio module

  1. Based on the theoretical maximum bandwidth enabled by 2x2 802.11ac implementations. Actual wireless throughput and/or range will vary depending on your specific operating system, hardware and software configurations. Check with your PC manufacturer for details.
  2. Intel® Wireless Display requires an Intel® Wireless Display enabled PC, tablet, or smartphone, a compatible adapter, and a TV. 1080p and Blu-Ray* or other protected content playback only available on select Intel® processors with built-in visuals enabled. Consult your PC manufacturer. For more information, see www.intel.com/go/widi
  3. Intel® vPro™ Technology is sophisticated and requires setup and activation. Availability of features and results will depend upon the setup and configuration of your hardware, software and IT environment.
    To learn more visit: http://www.intel.com/technology/vpro
  4. Requires activation and a system with a corporate network connection, an Intel® AMT-enabled chipset, network hardware and software. For notebooks, Intel® AMT may be unavailable or limited over a host OS-based VPN, when connecting wirelessly, on battery power, sleeping, hibernating or powered off. Results dependent upon hardware, setup & configuration. For more information, visit
    http://www.intel.com/technology/platform-technology/intel-amt
  5. Intel Location Based Service requires selected Intel wireless adapters and Intel® PROSet/Wireless WiFi Software v15.6 or later on Intel® 4th Gen Core processor-based PCs only.

Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific
computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist
you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products.

For the most current product information, please visit: http://www.intel.com/wireless
